Product Description：
1. A new generation of cost-effective 32-bit ARM electric drive system
2. Drive frequency up to 48MHZ, maximum speed up to 510K eRPM
3. High quality low internal resistance MosFET, effectively reduce the system operating temperature
4. Multilayer low internal resistance PCB motherboard, as an excellent heat dissipation substrate
5. Implement multiple protection such as throttle, voltage, current, temperature and low RPM
6. Efficient driving core, effectively avoid Sync-Loss conditions, support GA series 28-pole motors
7. Support SINE wave mode, efficiency up to 5%
8. Support regenerative braking
9. Rotation direction can be set, and support bidirectional operation mode
10. In addition to PWM throttle signal, supports Multishot, Oneshot, Dshot & Proshot protocols
11. PC software provides a wealth of parameter setting functions.
12. Integrated with a high-current UBEC, and features excellent peak performance.
13. Supports multiple R/C telemetry protocols through the new TELELink modular.
14. 100% load test passed, in line with ISO9001:2015 quality system
|

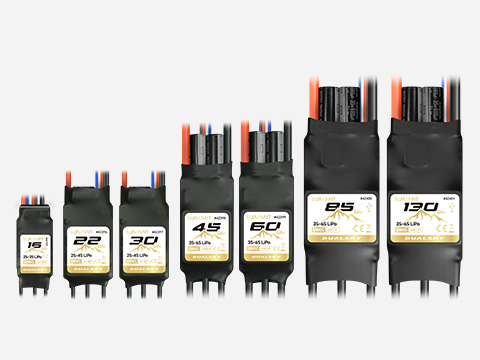

Item No. |
Name | Number of Cell | Current | UBEC |
Size (Lx W x T) w/o wires |
|

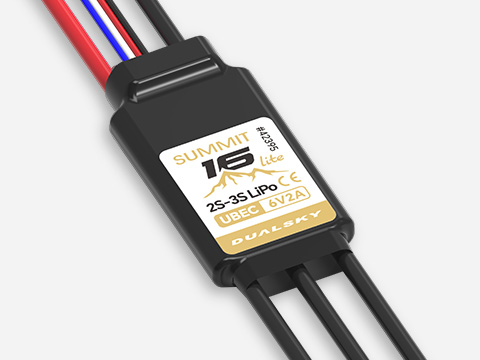

42395 |
Summit 16LITE |
2S-3S Lipo |
16A cont./ 30A peak |
6.0V 2A/4A peak |
32 x 15 x 5.5 mm |
|
42396 |
Summit 22LITE |
2S-4S Lipo |
22A cont./ 40A peak |
6.0V 4A/8A peak |
44 x 23 x 7.2 mm |
|

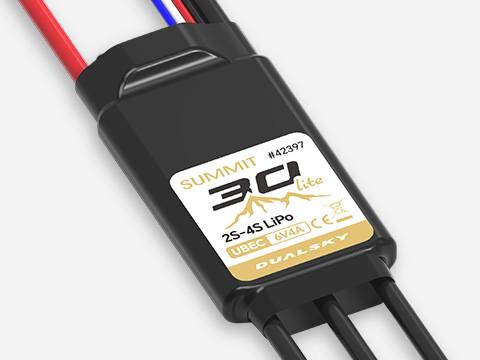

42397 |
Summit 30LITE |
2S-4S Lipo |
30A cont./ 50A peak |
6.0V 4A/8A peak |
44 x 23 x 7.2 mm |
|
42398 |
Summit 45LITE |
3S-6S Lipo |
45A cont./ 70A peak
|
6.0V 6A/10A peak |
66 x 25 x 10.7 mm |
|

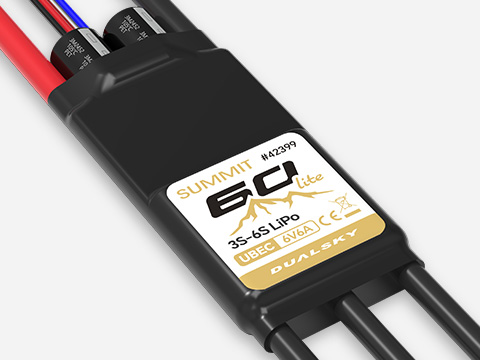

42399 |
Summit 60LITE |
3S-6S Lipo |
60A cont./ 80A peak
|
6.0V 6A/10A peak |
66 x 25 x 10.7 mm |
|
42400 |
Summit 85LITE |
3S-6S Lipo |
85A cont./ 110A peak
|
6.0V 7A/10A peak |
84 x 36 x 9.5 mm |
|

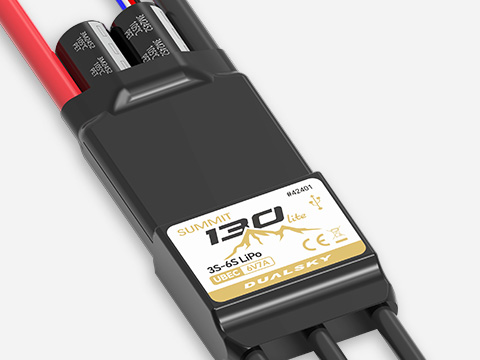

42401 |
Summit 130LITE |
3S-6S Lipo |
130A cont./ 160A peak
|
6.0V 7A/10A peak |
84 x 36 x 14.2 mm |
