Product Description：
T7 & T7+ Features:
• Next-generation digital servos
• Wide voltage compatibility, supports from 8.4V(2S Lipo) to 3.0V(1S Lipo)
• Thin and compact design

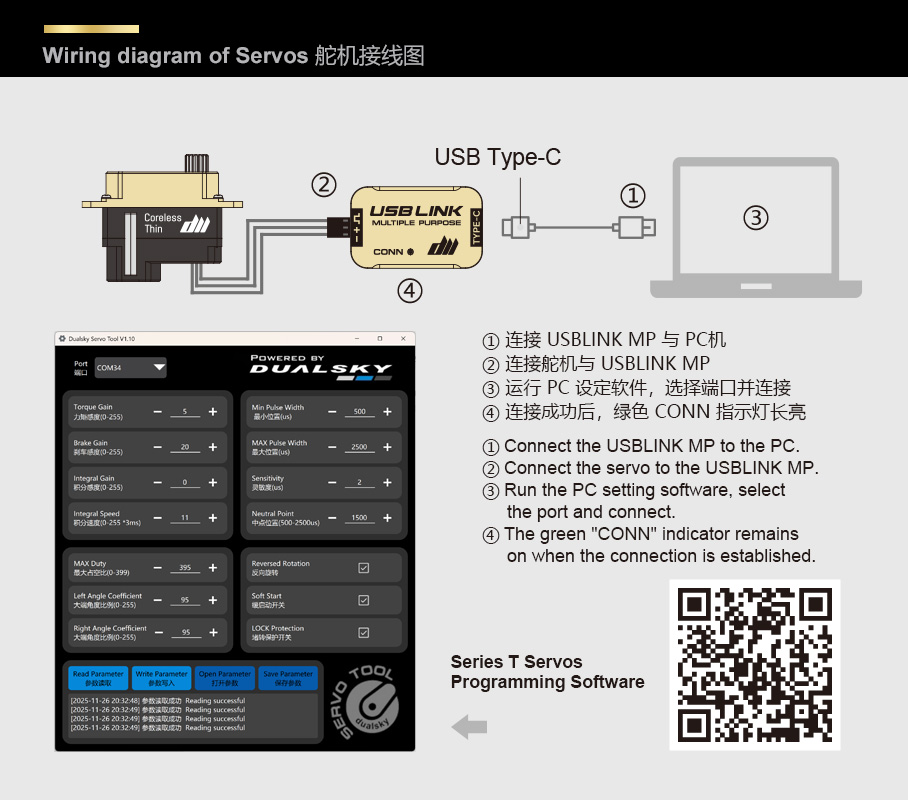

• Servotool software is provided to fine-tune the sensitivity and accuracy for different models
• Excellent torque and speed
• Enable soft-boot protection

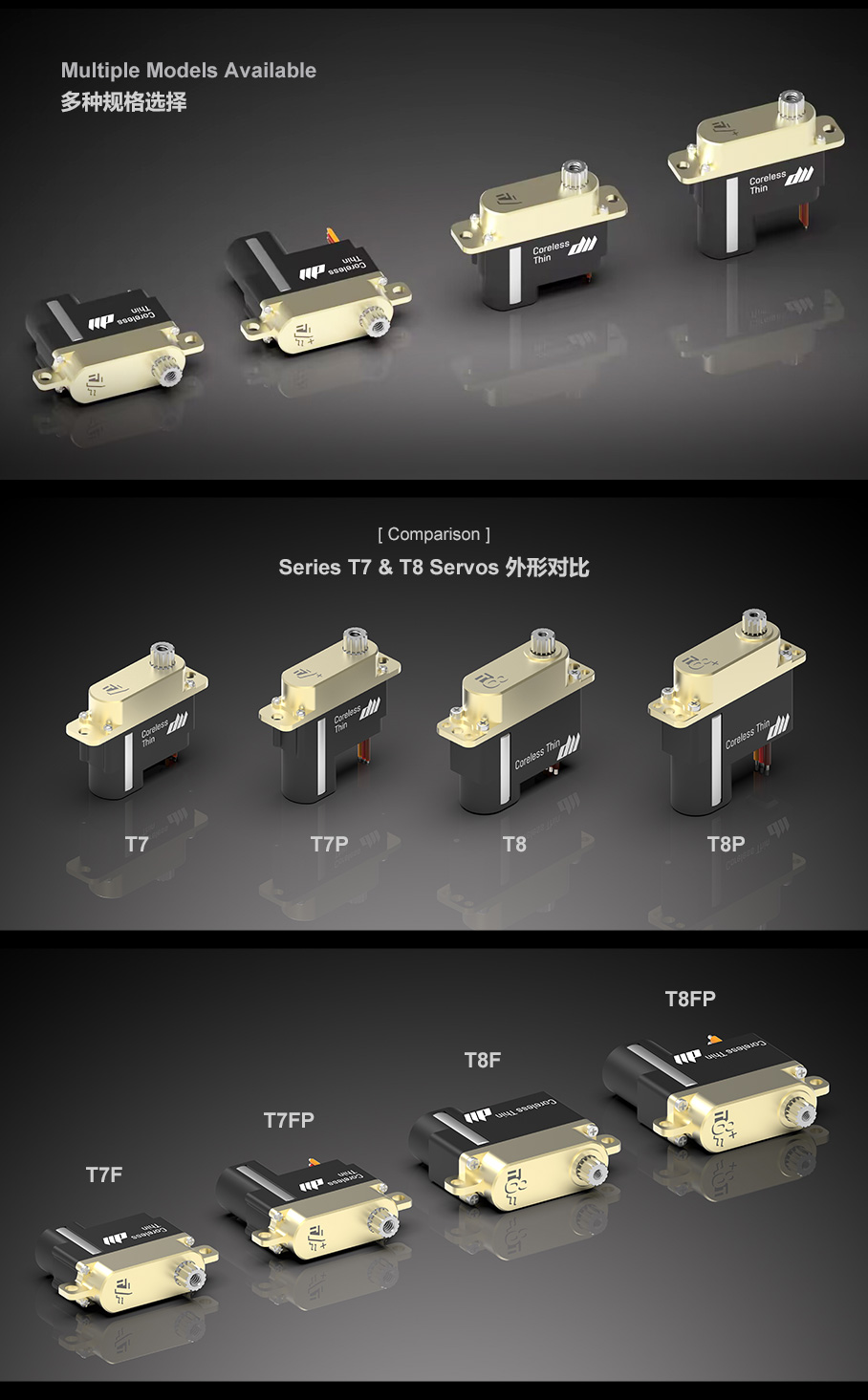

• Two versions of over-sized(exposed) D7.0mm motors
• Two types of mounting lugs(upright & horizontal)
• High-quality hardened steel gears
• Fully CNC machined aluminum case
• Dual ball bearings
• Excellent heat dissipation

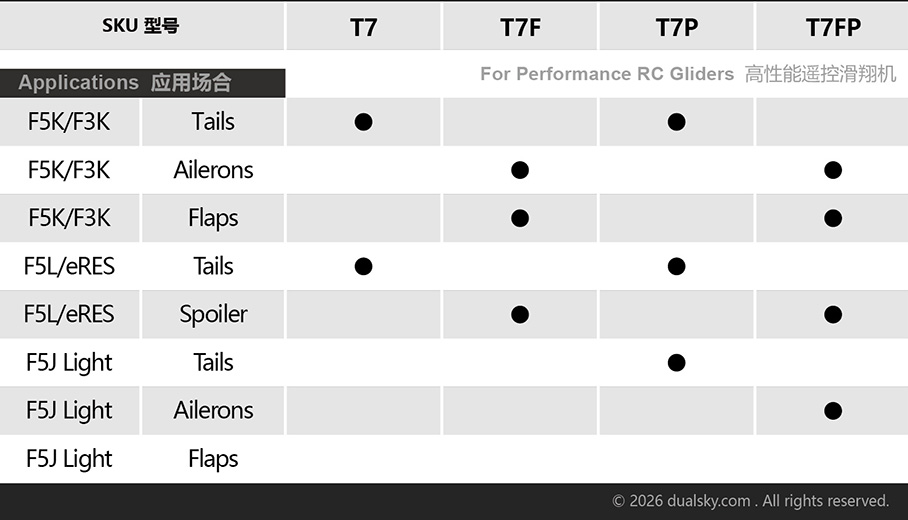

• Designed for performance RC Gliders(F3K, F5K, F5L, eRES & F5J FAI)

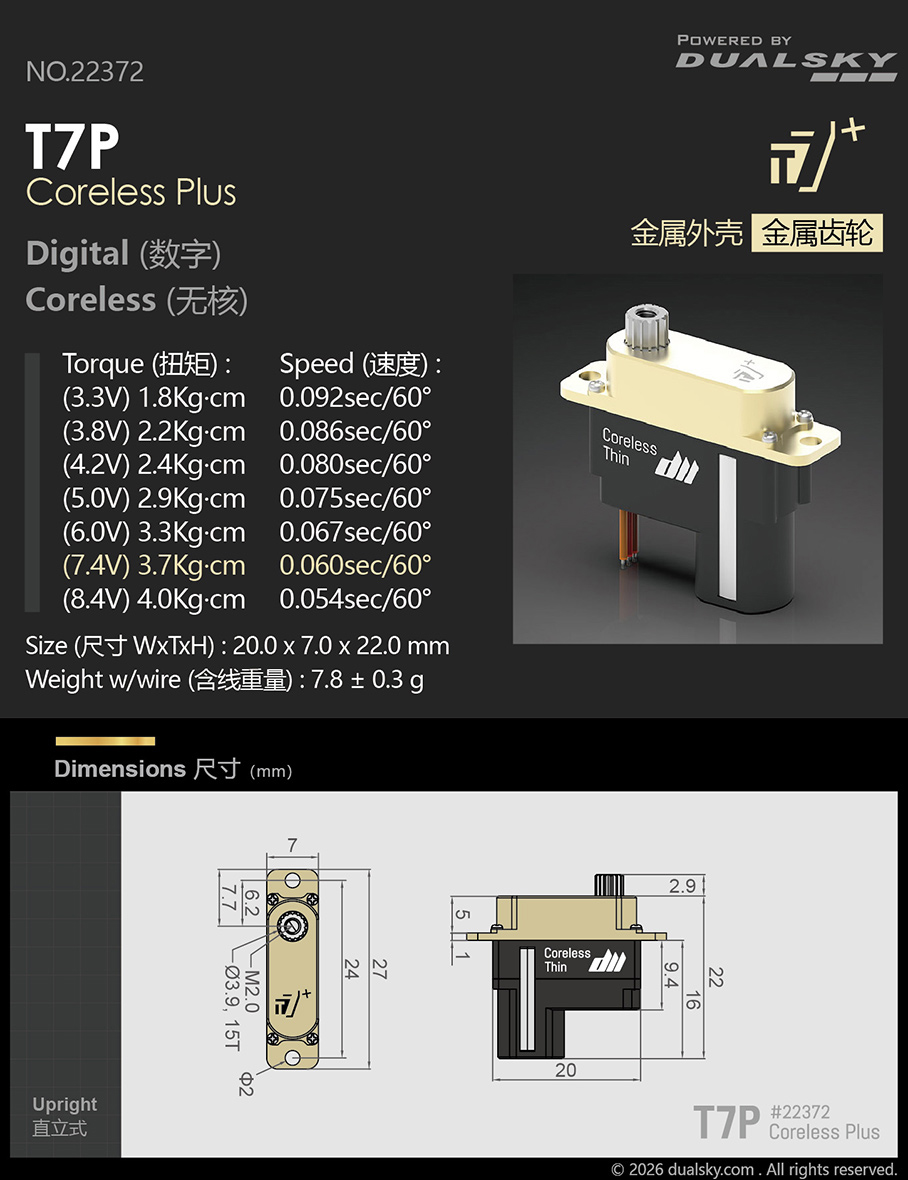

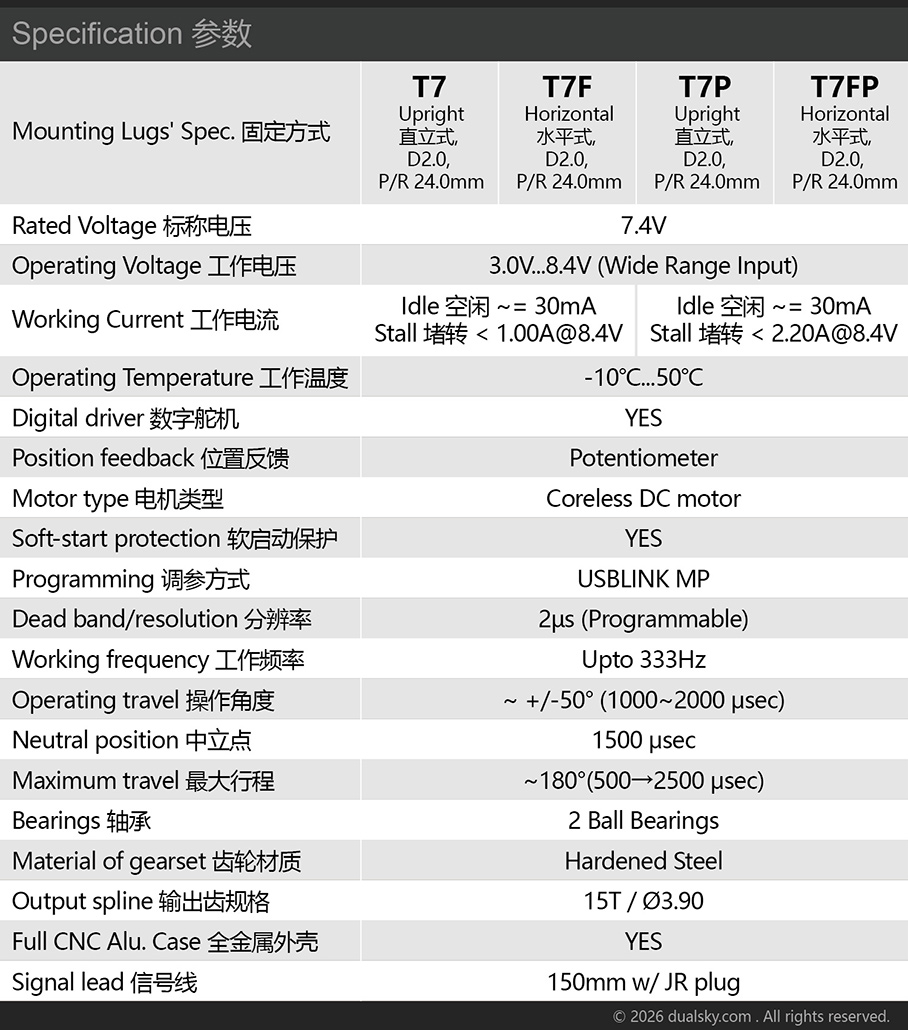

| Specifications | NO. 22370 | NO. 22371 | NO. 22372 | NO. 22373 |

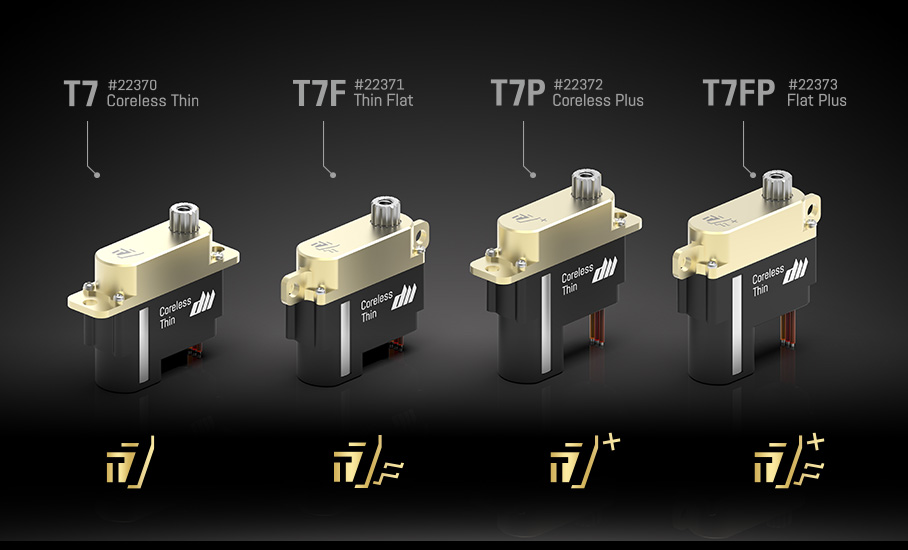

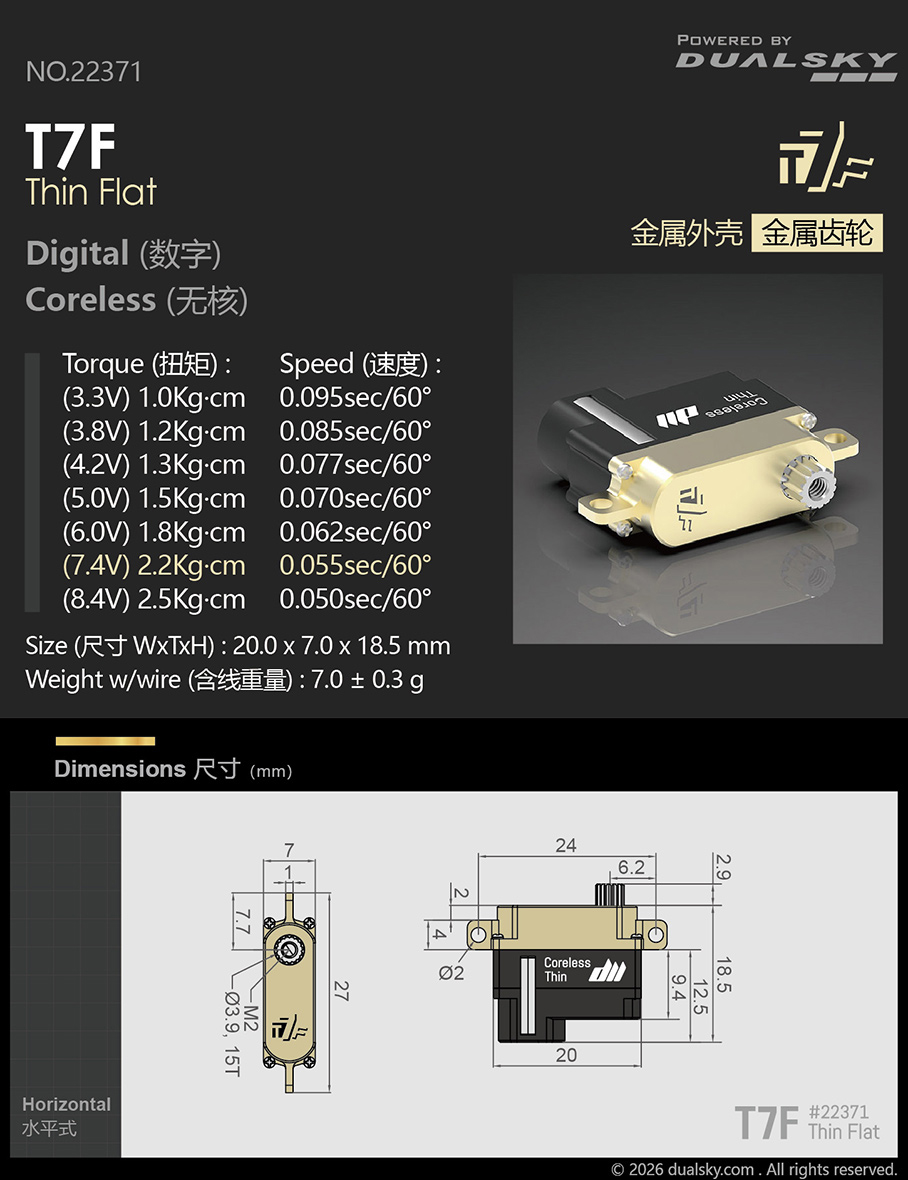

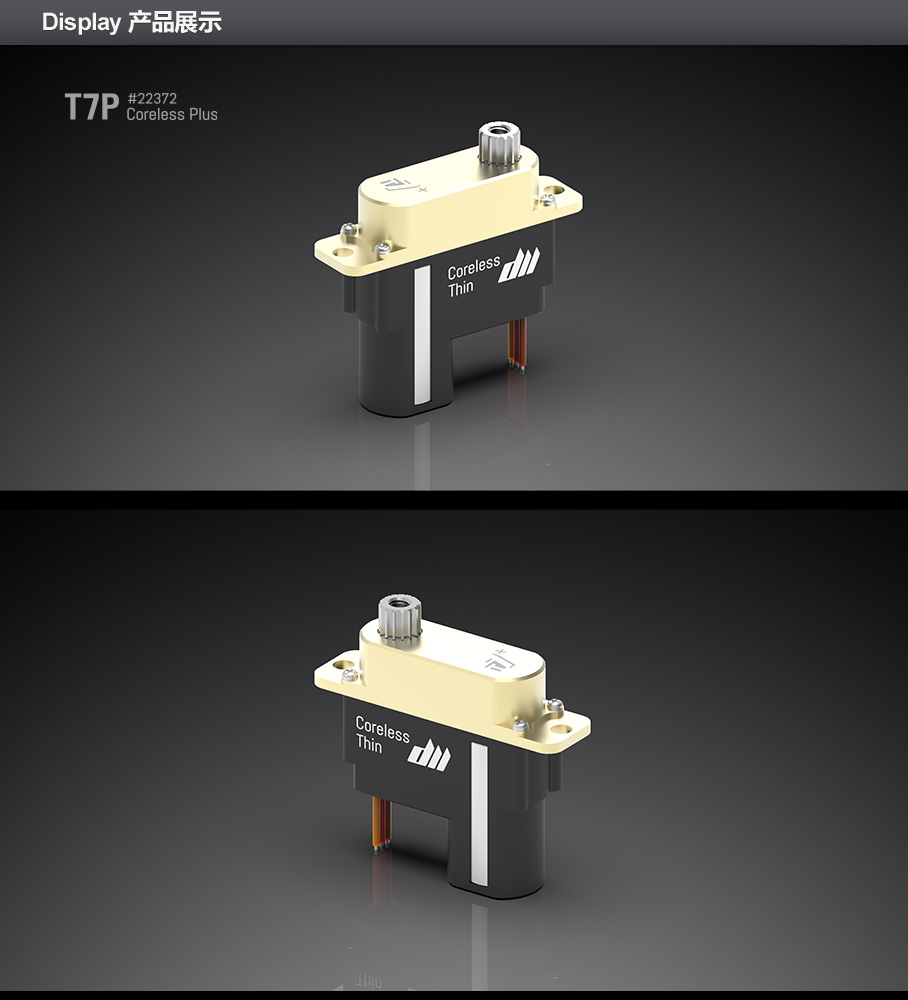

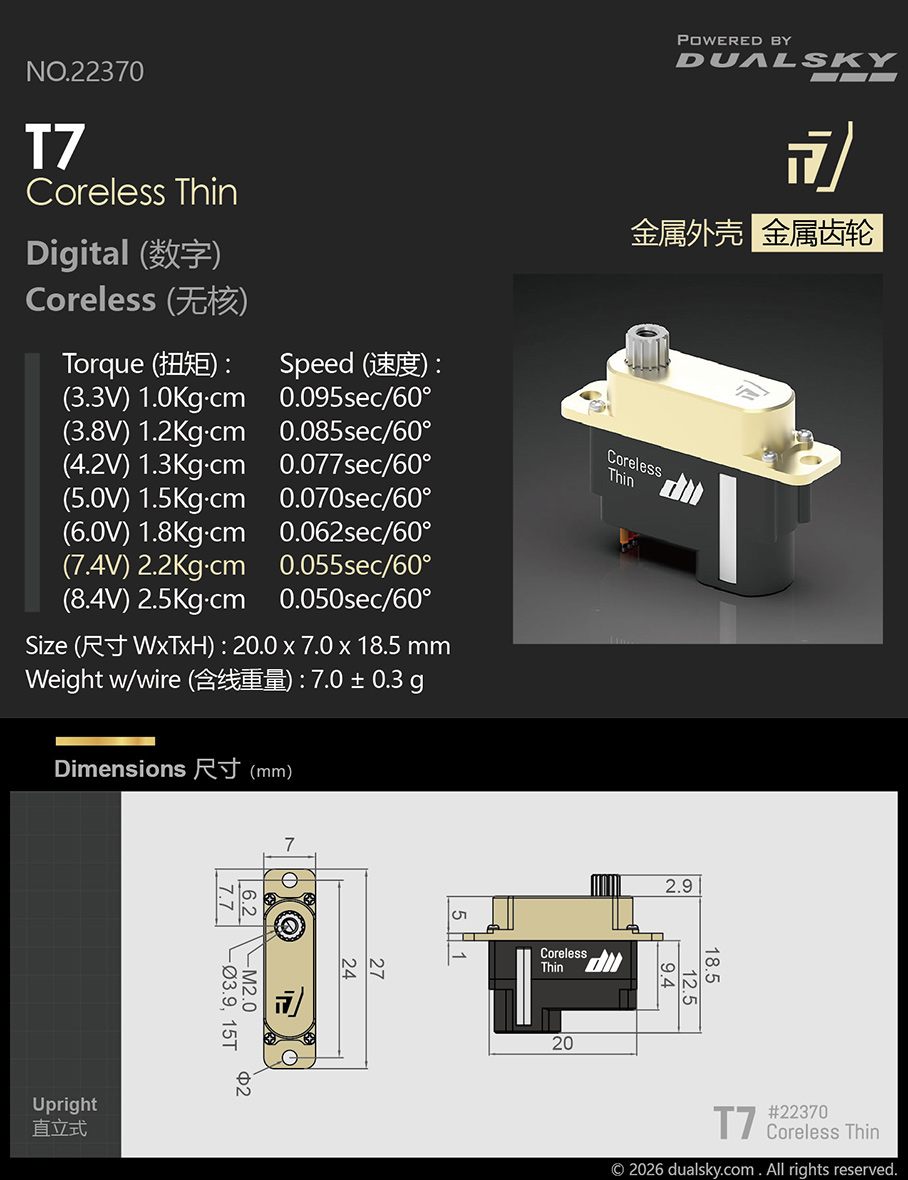

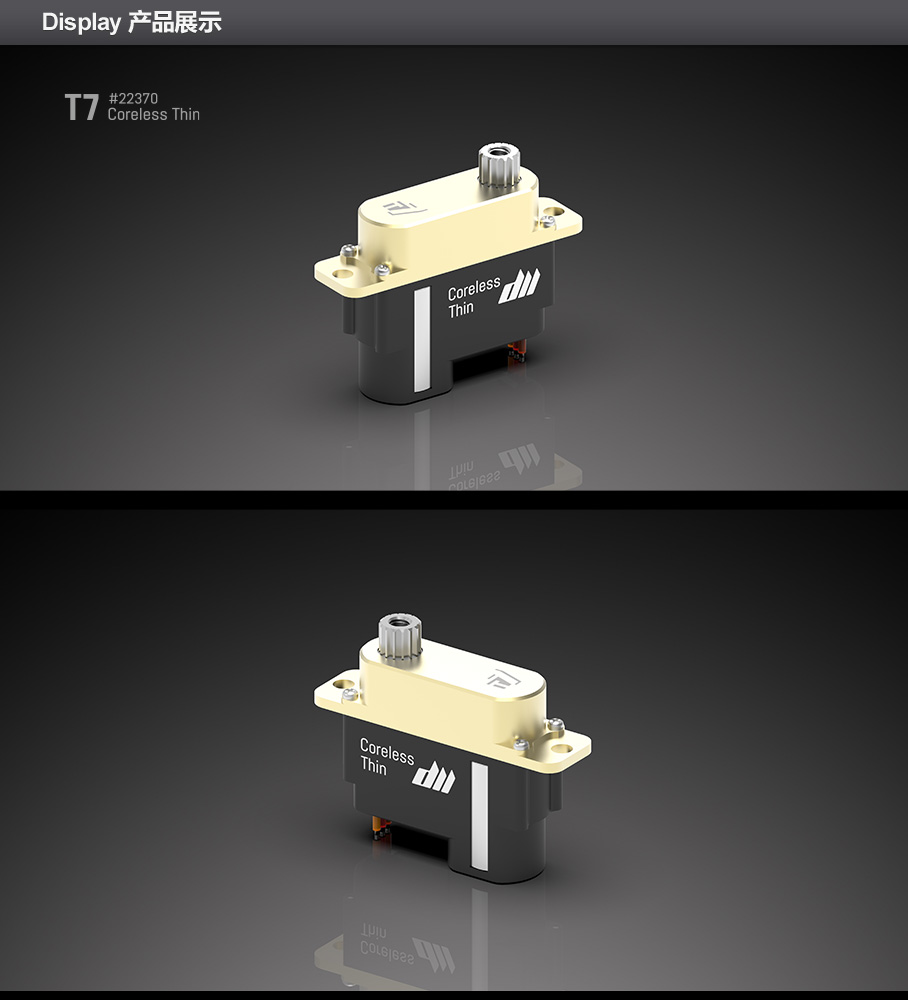

| T7 - Coreless Thin | T7F - Thin Flat | T7P - Coreless Plus | T7FP - Flat Plus | |
|

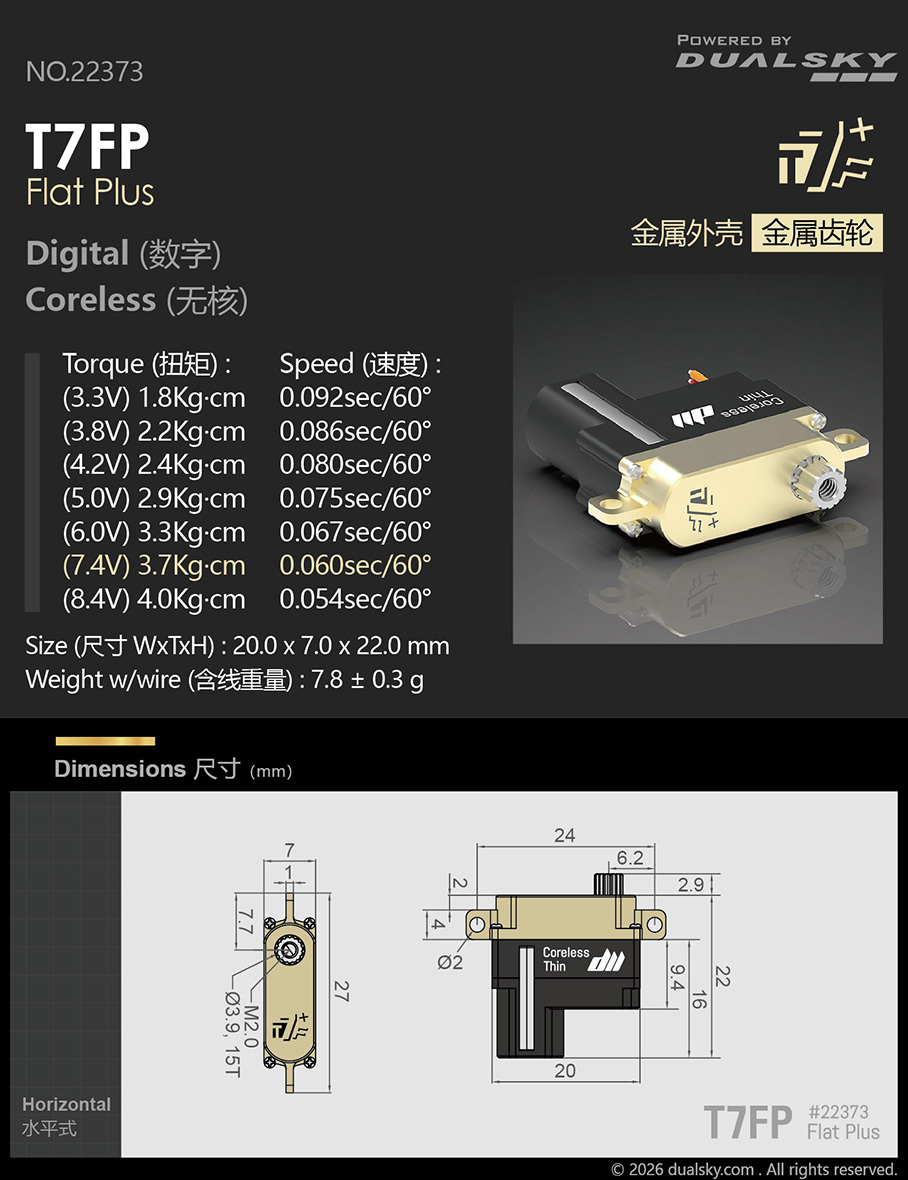

Body Dimensions (W x T x H) |
20.0 x 7.0 x 18.5 mm | 20.0 x 7.0 x 22.0 mm | ||
| Weight w/ wire | 7.0 ± 0.3 g | 7.8 ± 0.3 g | ||
| Stall torque / Speed |
(3.3V) 1.0 Kg·cm, 0.095 sec/60° (3.8V) 1.2 Kg·cm, 0.085 sec/60° (4.2V) 1.3 Kg·cm, 0.077 sec/60° (5.0V) 1.5 Kg·cm, 0.070 sec/60° (6.0V) 1.8 Kg·cm, 0.062 sec/60° (7.4V) 2.2 Kg·cm, 0.055 sec/60° (8.4V) 2.5 Kg·cm, 0.050 sec/60° |
(3.3V) 1.8 Kg·cm, 0.092 sec/60° (3.8V) 2.2 Kg·cm, 0.086 sec/60° (4.2V) 2.4 Kg·cm, 0.080 sec/60° (5.0V) 2.9 Kg·cm, 0.075 sec/60° (6.0V) 3.3 Kg·cm, 0.067 sec/60° (7.4V) 3.7 Kg·cm, 0.060 sec/60° (8.4V) 4.0 Kg·cm, 0.054 sec/60° |
||
