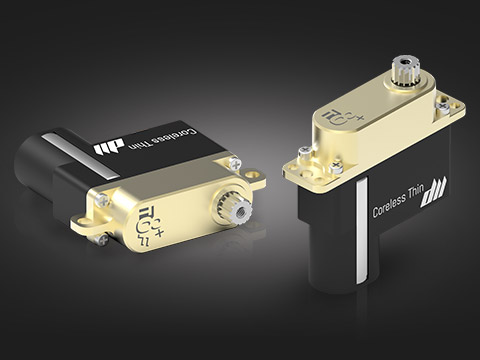

Product Description：

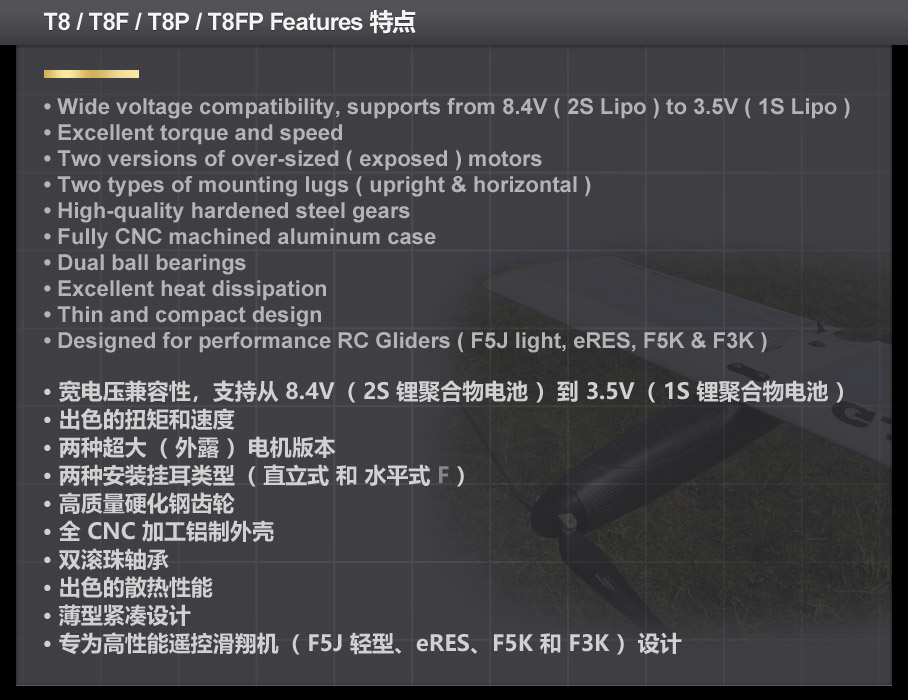

T8 & T8+ Features:
• Wide voltage compatibility, supports from 8.4V(2S Lipo) to 3.5V(1S Lipo)
• Excellent torque and speed

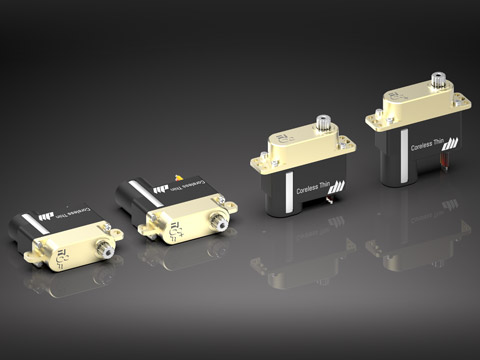

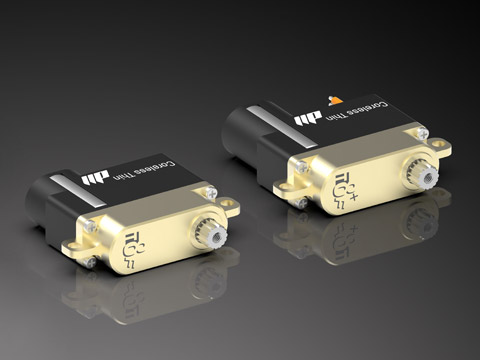

• Two versions of over-sized(exposed) motors
• Two types of mounting lugs(upright & horizontal)
• High-quality hardened steel gears
• Fully CNC machined aluminum case
• Dual ball bearings
• Excellent heat dissipation
• Thin and compact design

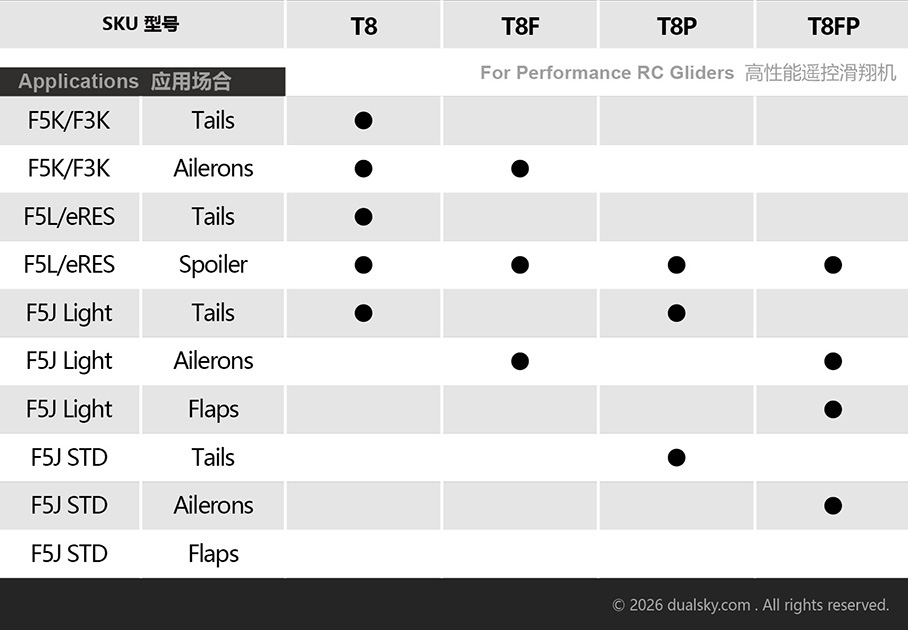

• Designed for performance RC Gliders(F5J light, eRES, F5K & F3K)

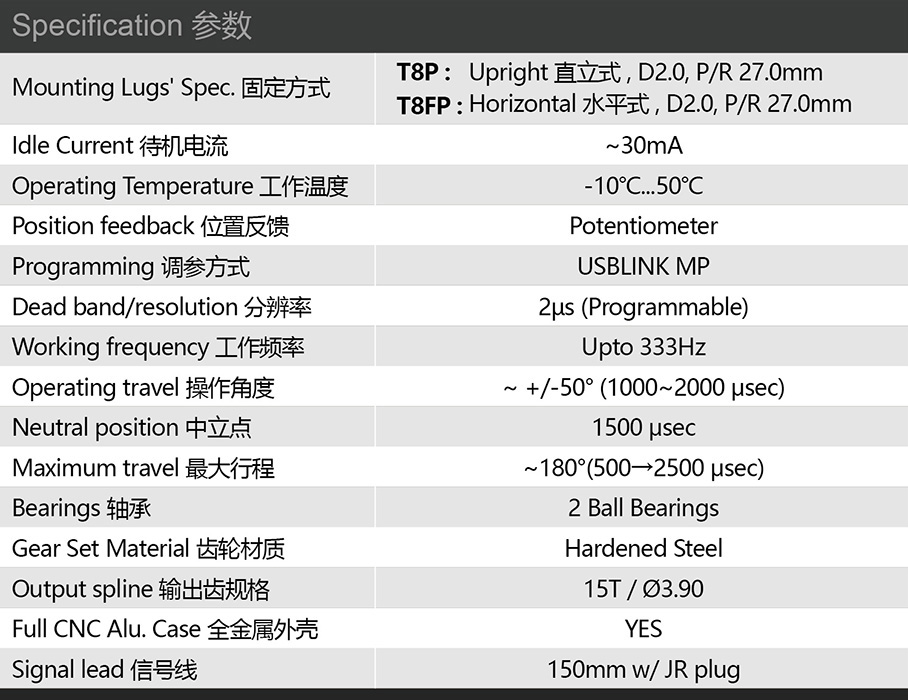

| Specifications | NO. 22374 | NO. 22375 | NO. 22376 | NO. 22377 |

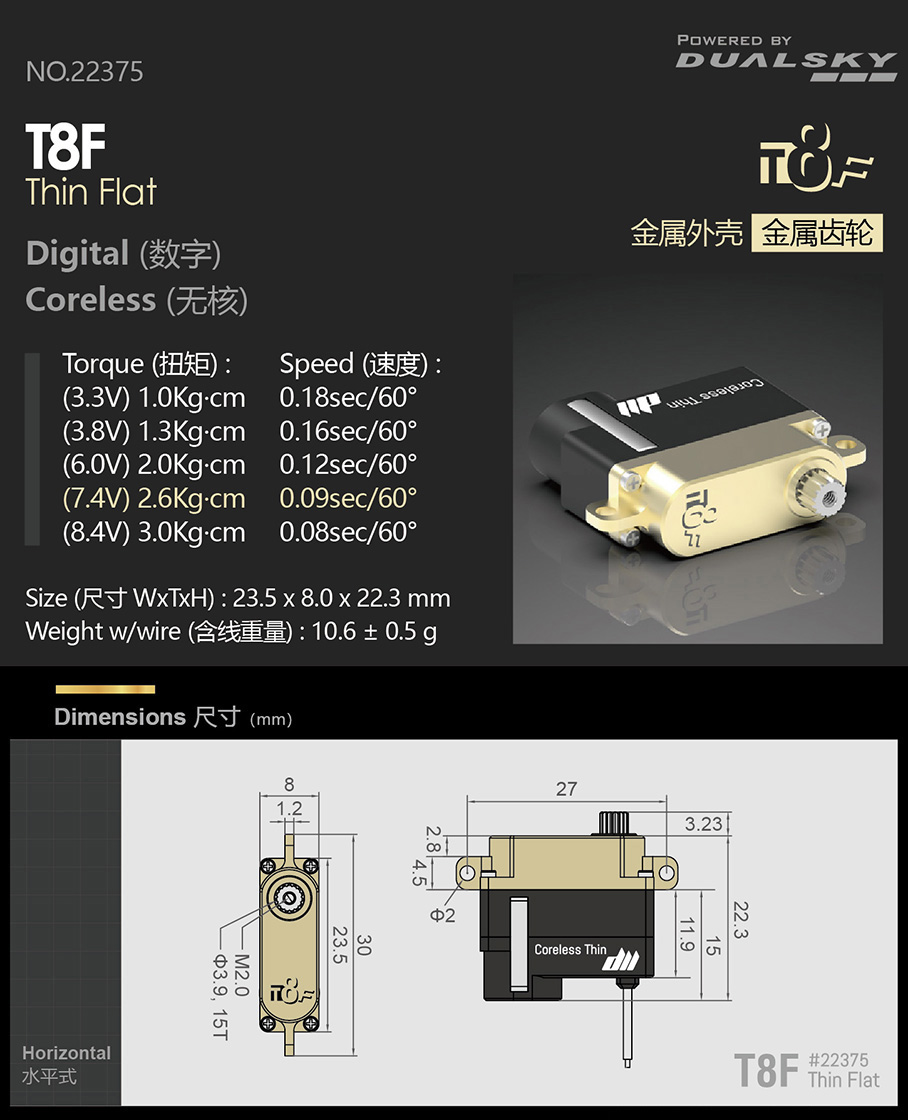

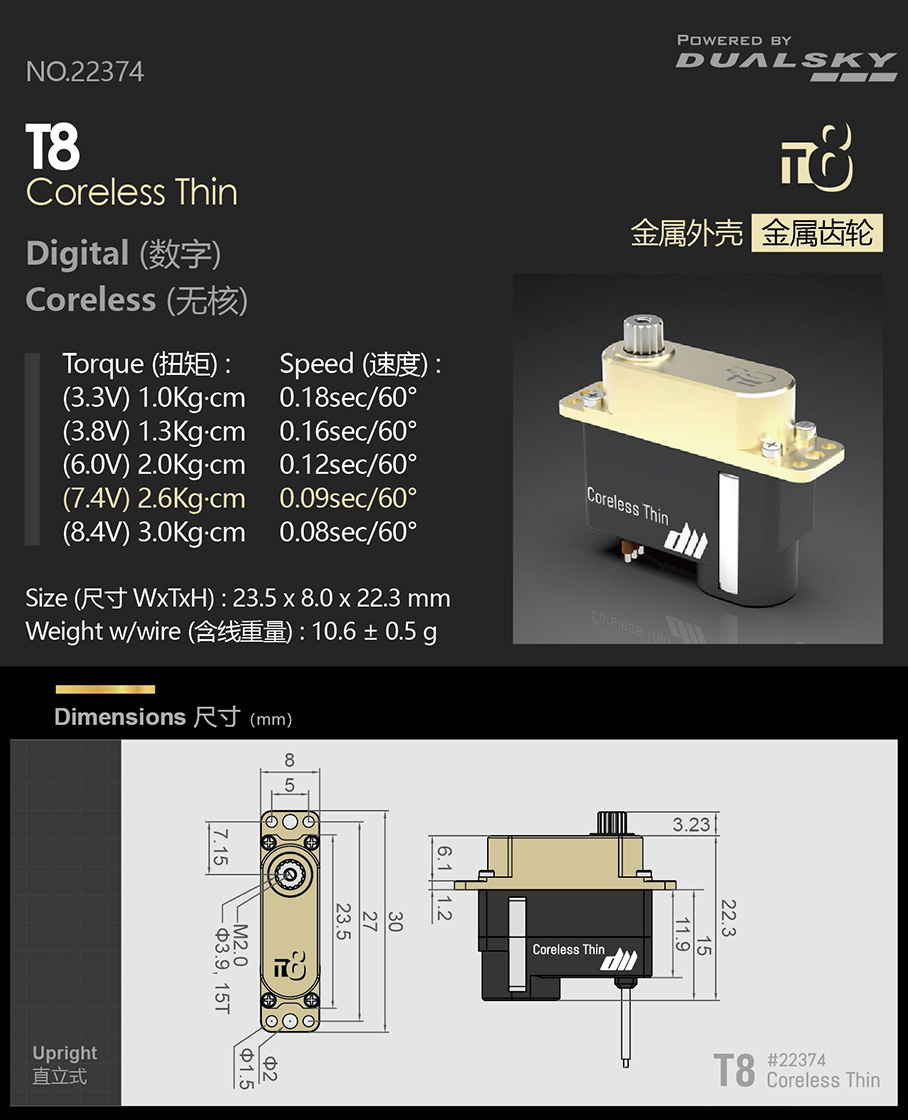

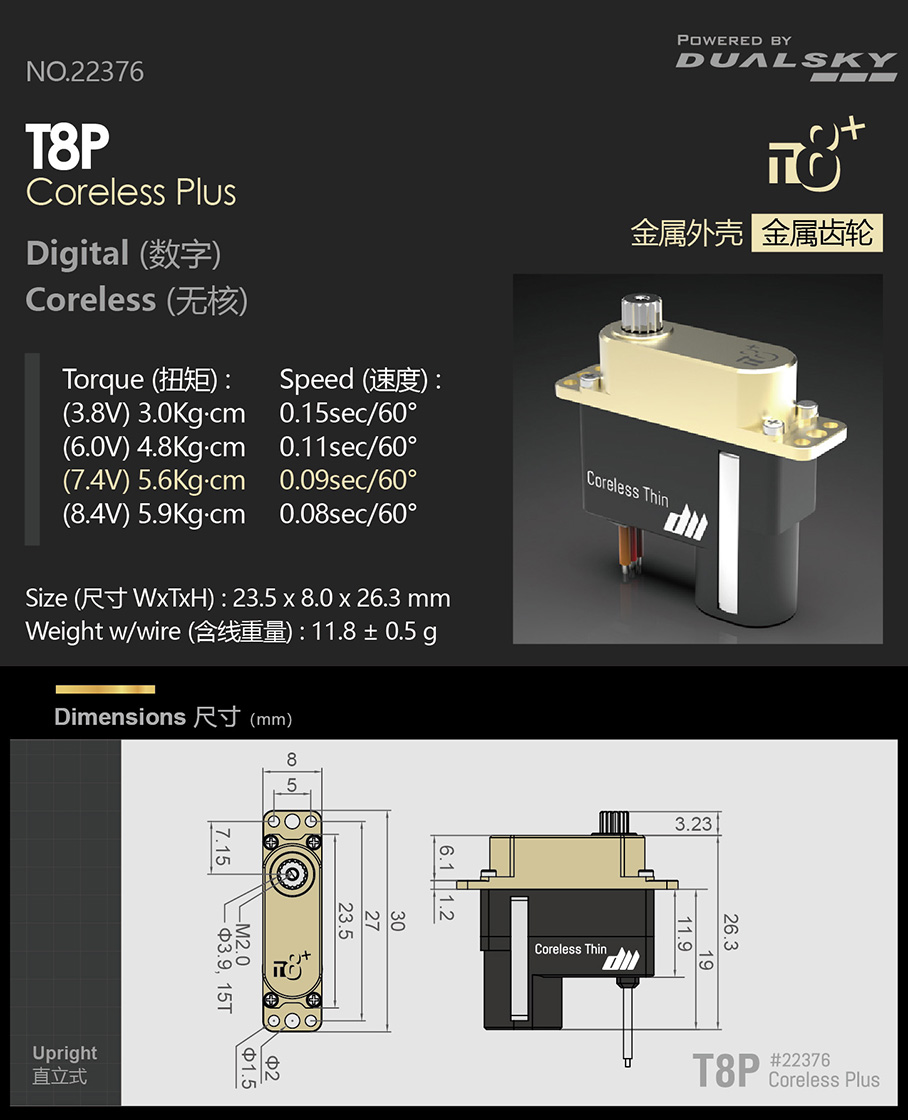

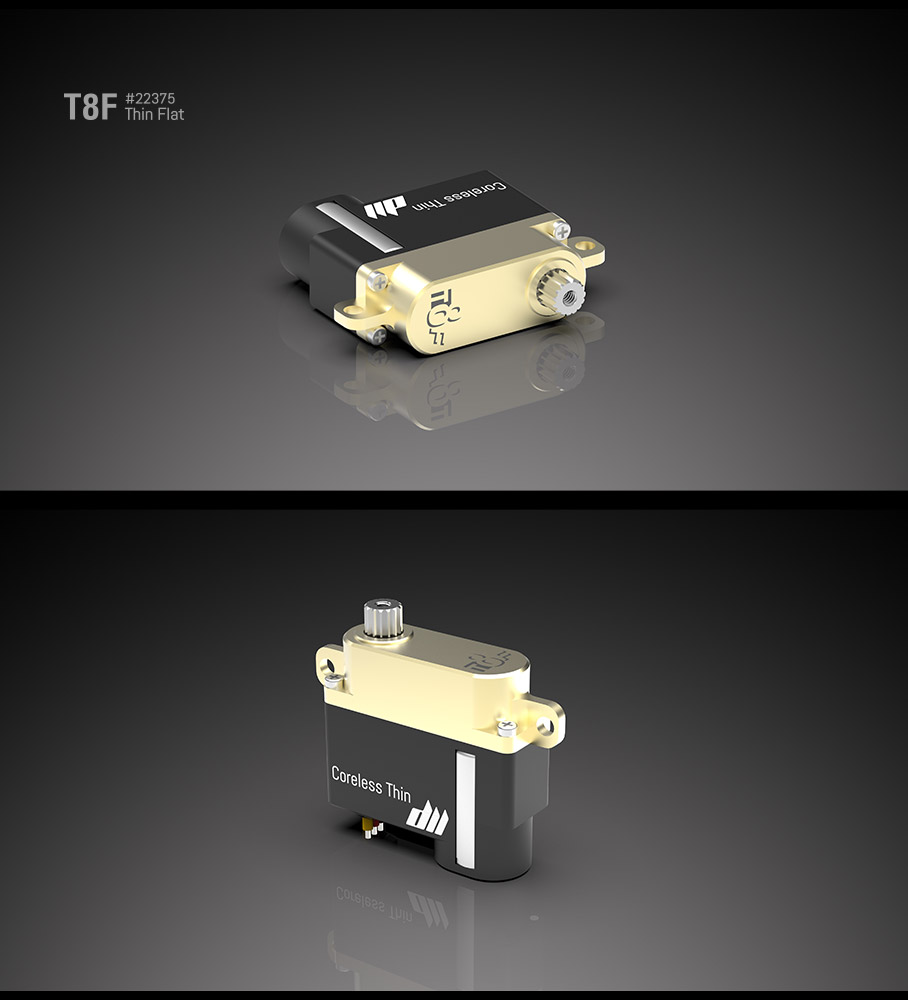

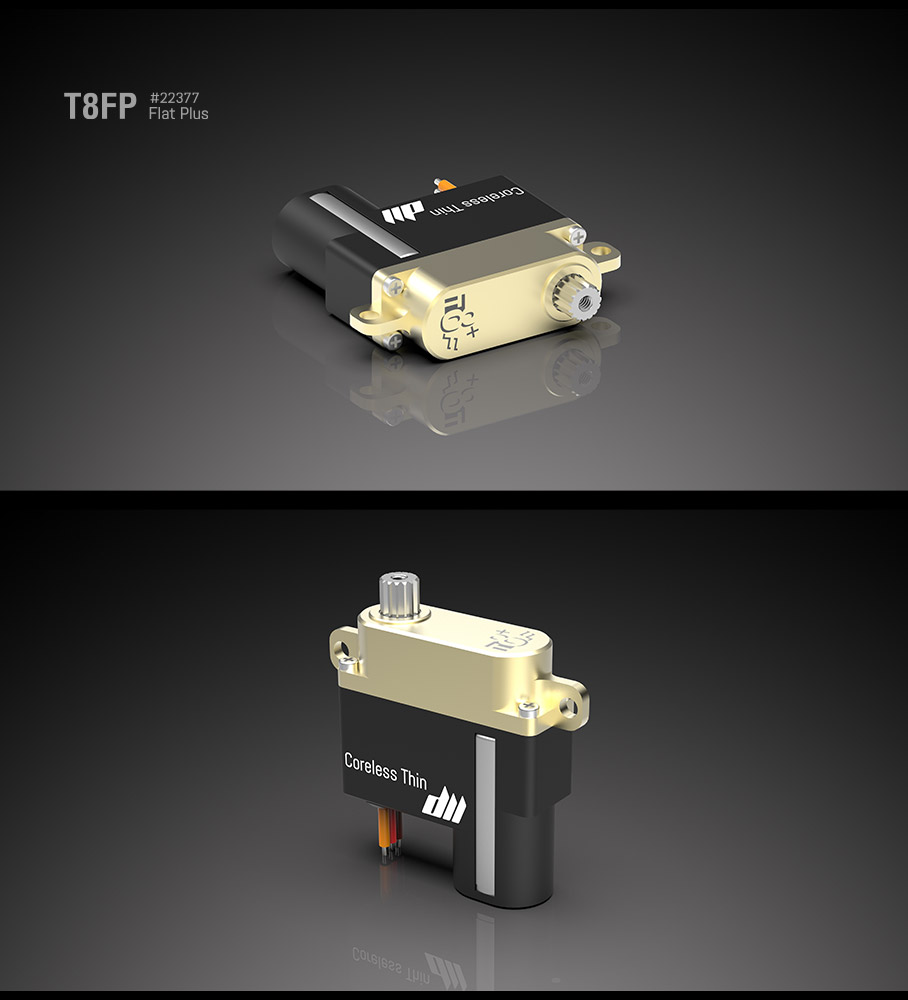

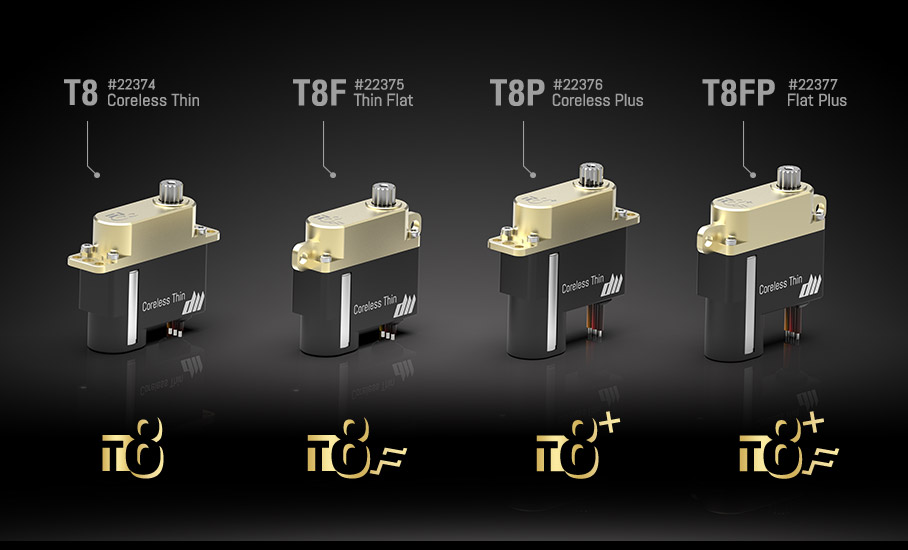

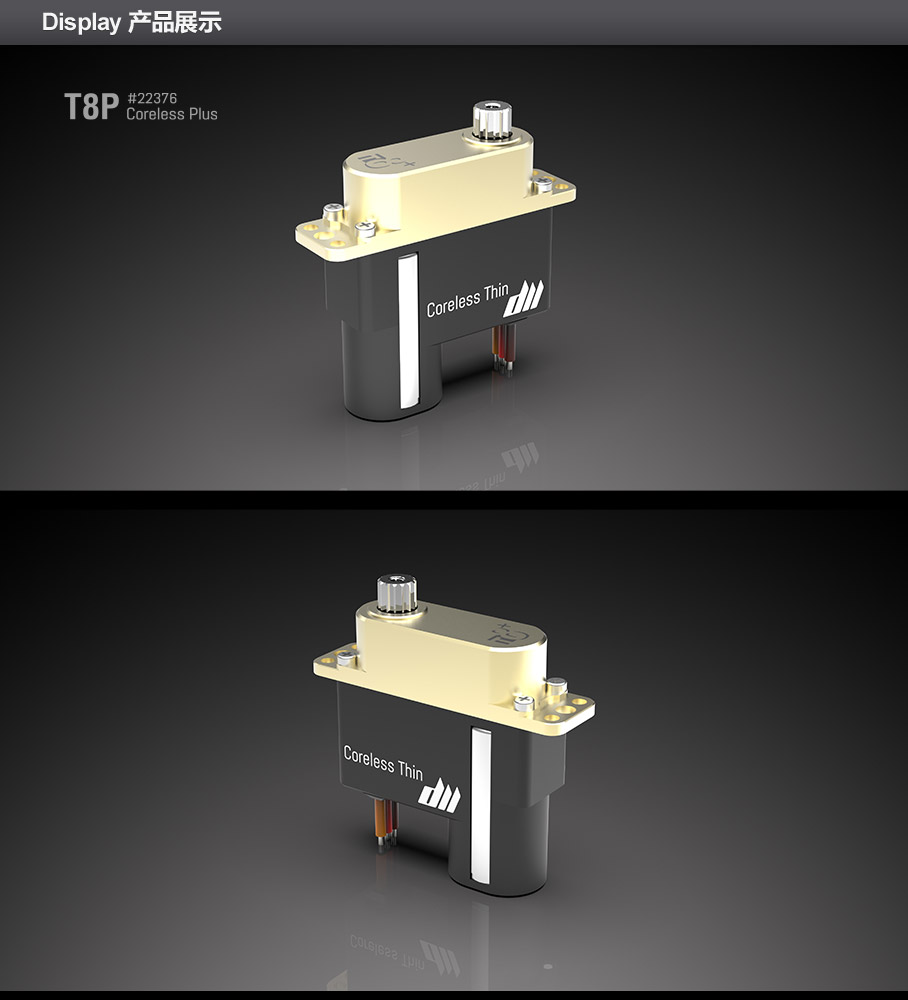

| T8 - Coreless Thin | T8F - Thin Flat | T8P - Coreless Plus | T8FP - Flat Plus | |
|
Body Dimensions (W x T x H) |
23.5 x 8.0 x 22.3 mm | 23.5 x 8.0 x 26.3 mm | ||
| Weight w/ wire | 10.6 ± 0.5 g | 11.8 ± 0.5 g | ||
| Stall torque / Speed |
(3.3V) 1.0 Kg·cm, 0.18 sec/60° (3.8V) 1.3 Kg·cm, 0.16 sec/60° (6.0V) 2.0 Kg·cm, 0.12 sec/60° (7.4V) 2.6 Kg·cm, 0.09 sec/60° (8.4V) 3.0 Kg·cm, 0.08 sec/60° |
(3.8V) 3.0 Kg·cm, 0.15 sec/60° (6.0V) 4.8 Kg·cm, 0.11 sec/60° (7.4V) 5.6 Kg·cm, 0.09 sec/60° (8.4V) 5.9 Kg·cm, 0.08 sec/60° |
||
