DFP Carbon Propeller

Product Description:

1. The new generation of folding propeller blades independently developed by DUALSKY

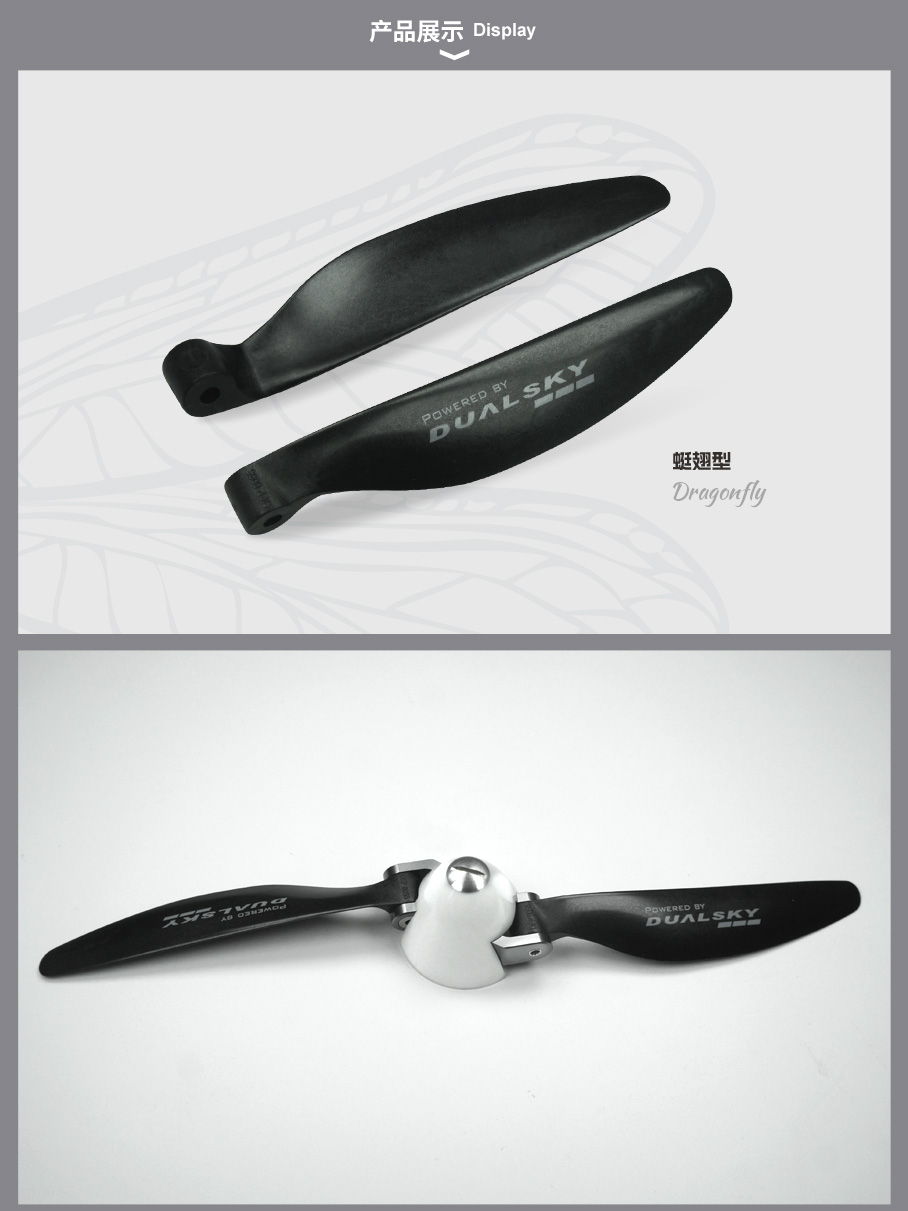

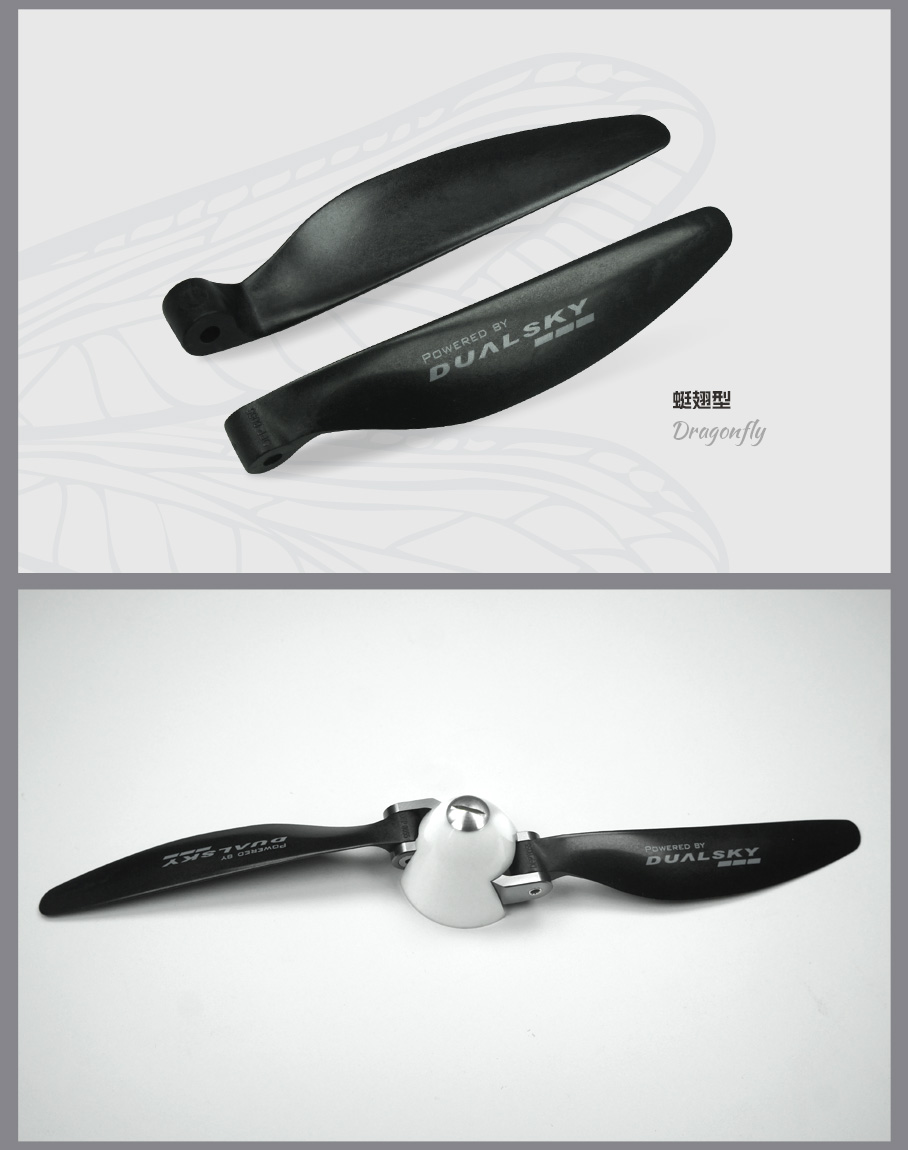

2. The "Dragonfly Wing" series features flat shapes, inspired by nature

3. Self-developed high-speed laminar flow low-drag airfoils, with excellent high-speed performance

4. The high span-chord ratio design brings about a significant efficiency improvement

5. Thanks to the new carbon fiber composite nylon plastic, which features excellent strength and weather resistance

6. The weights of the blades are more than 20% lower than that of the same classes (classic models)

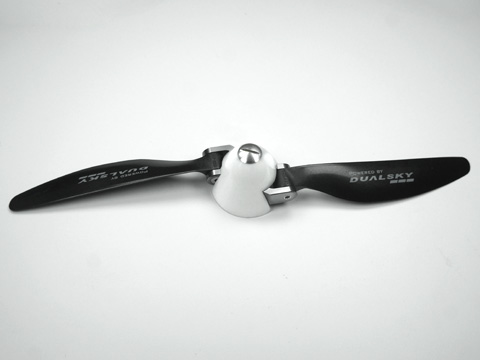

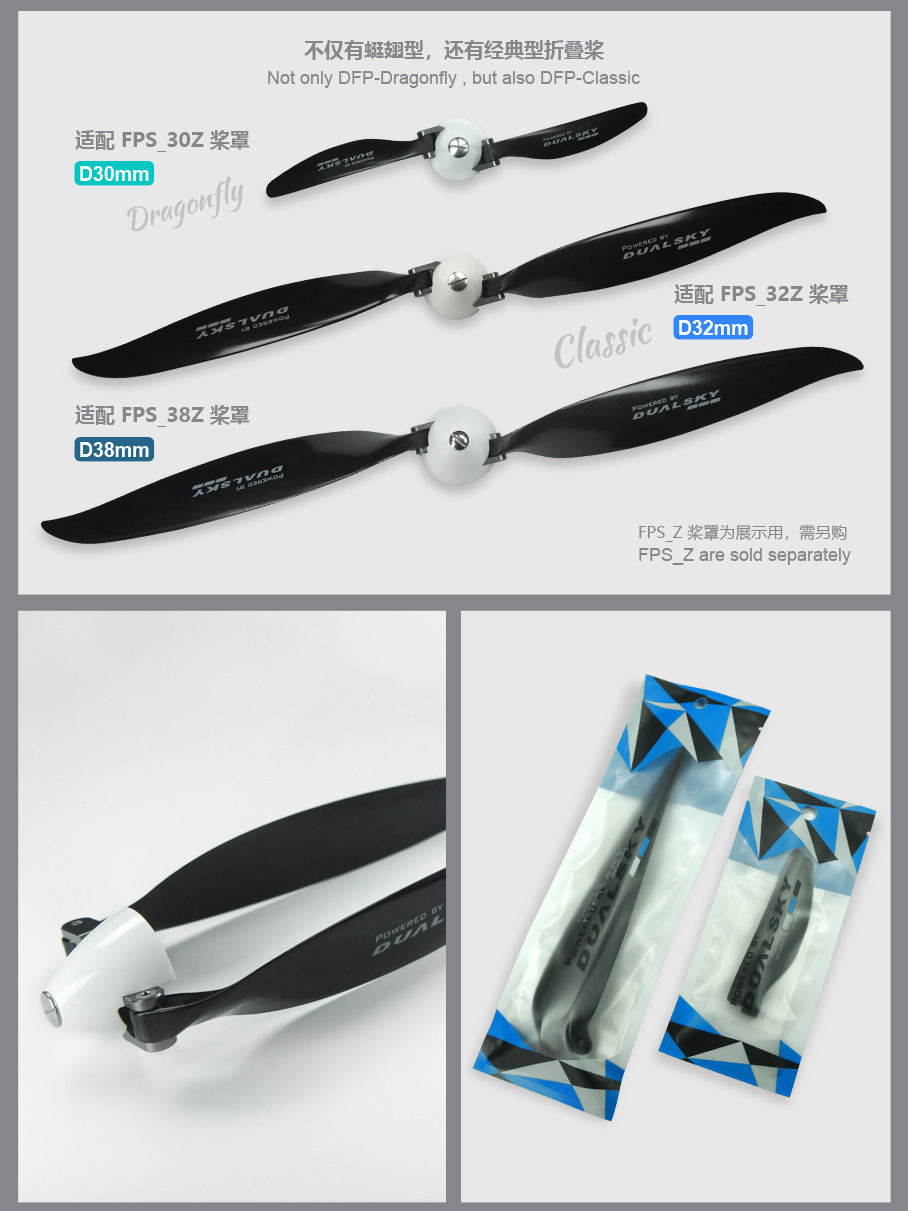

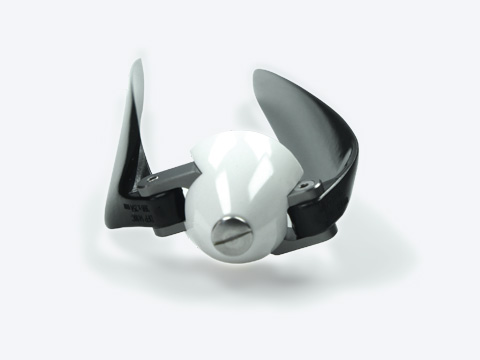

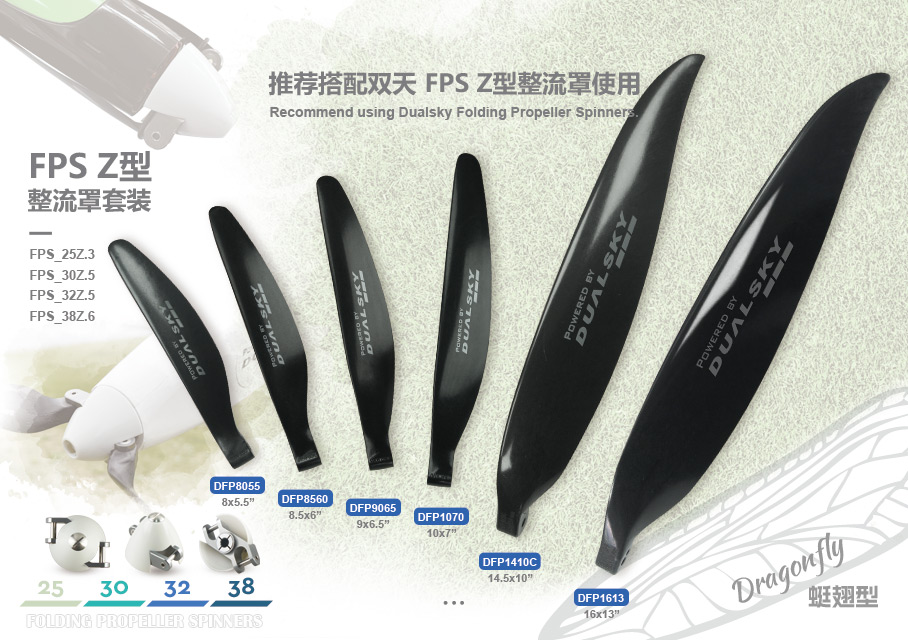

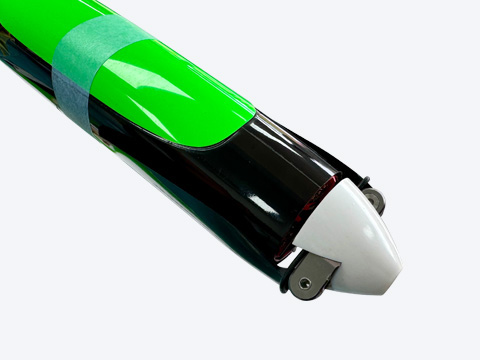

7. Optimized for the Dualsky FPS-Z spinners, fit the fuselages very well when folded

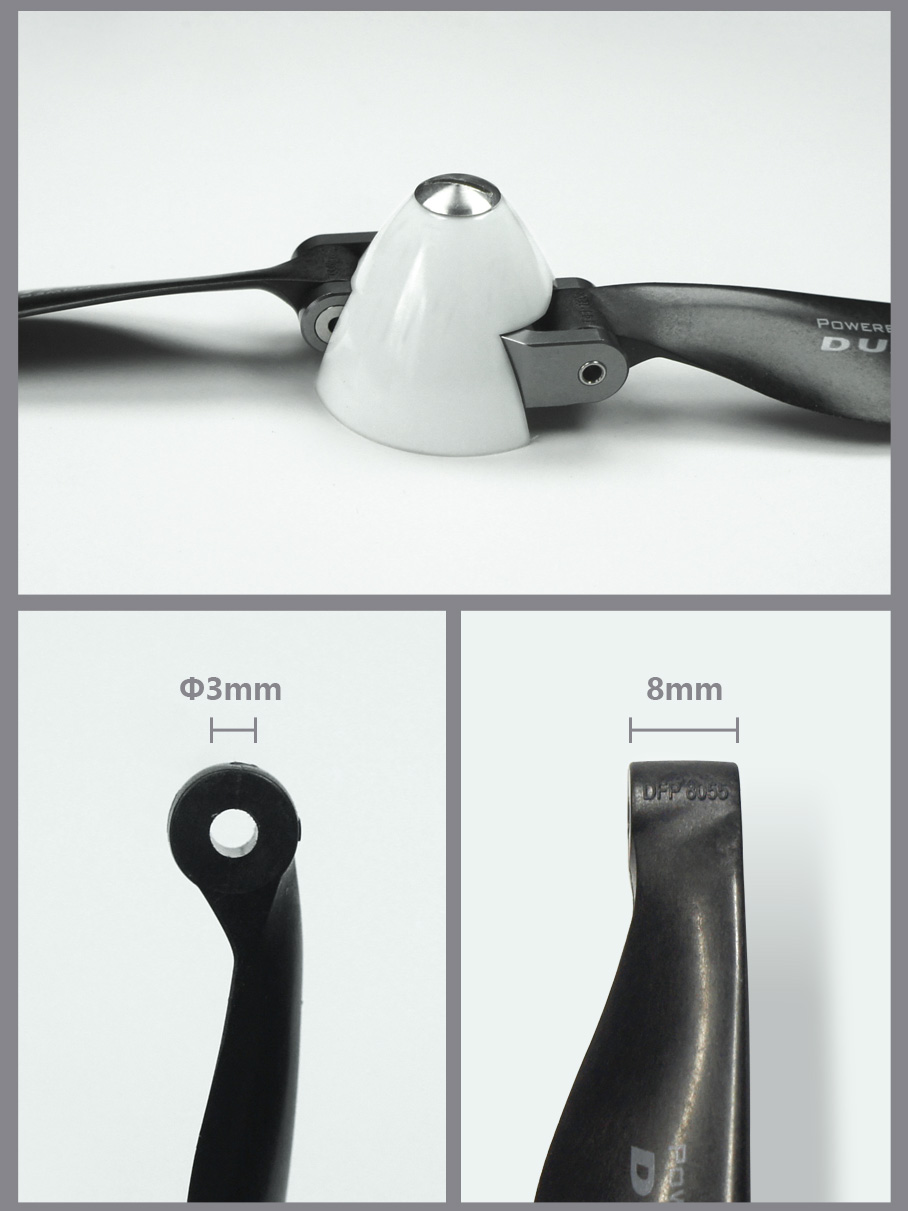

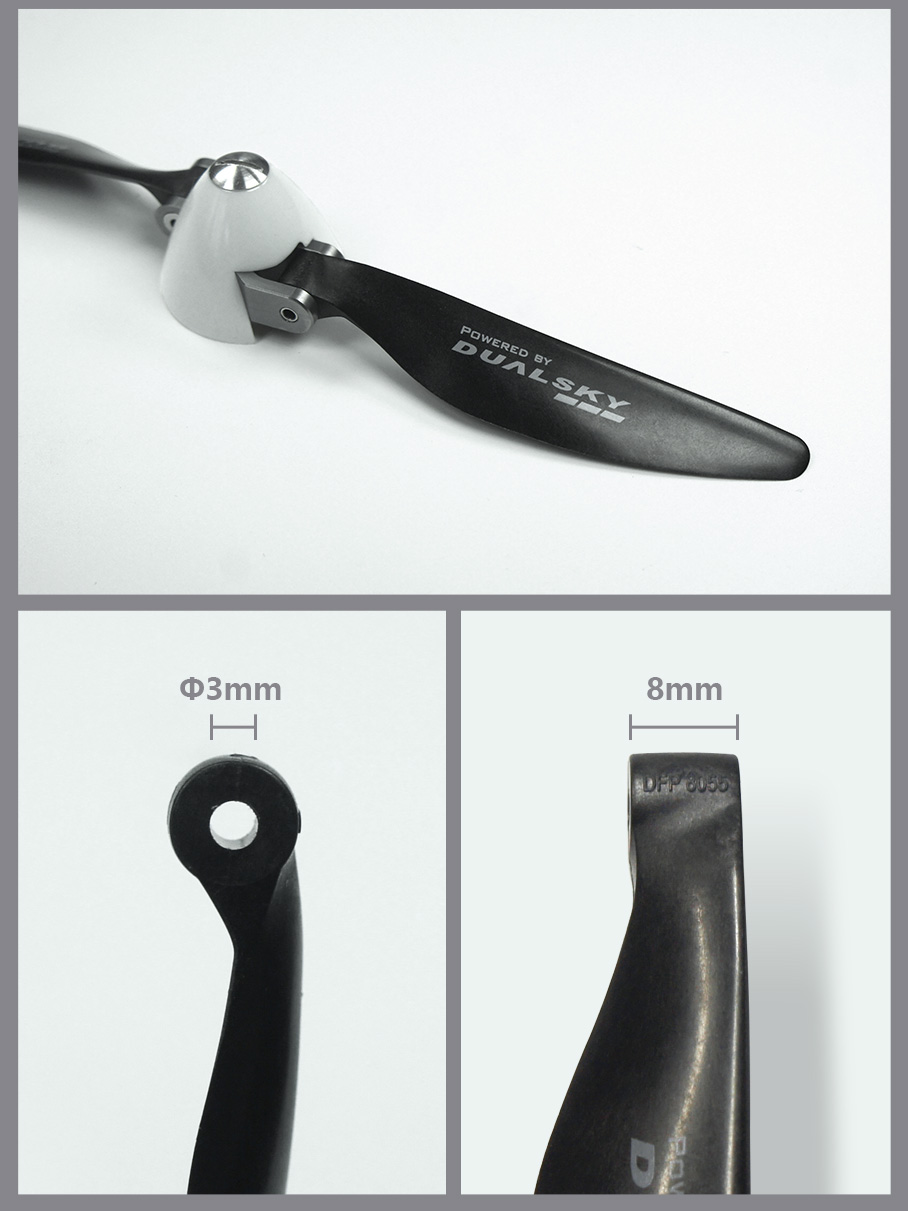

8. Standard root design: 8mm width and D3.0 pins

9. Applications cover R/C gliders such as F5B, F5K, eRES and F5J, as well as small unmanned aerial vehicles (UAVs & Drones).

  • Description
  • Item Number
  • Download
item number      description               prop (D x P)     weight of 2 blades     Max.RPM

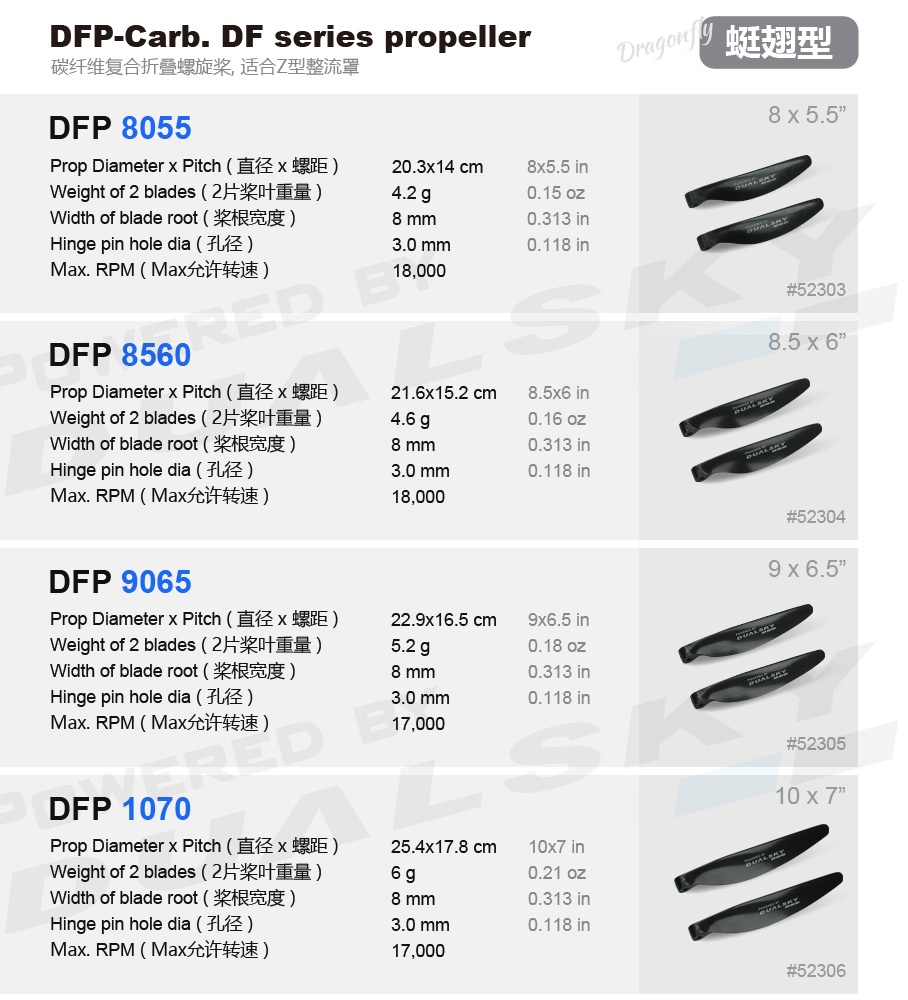

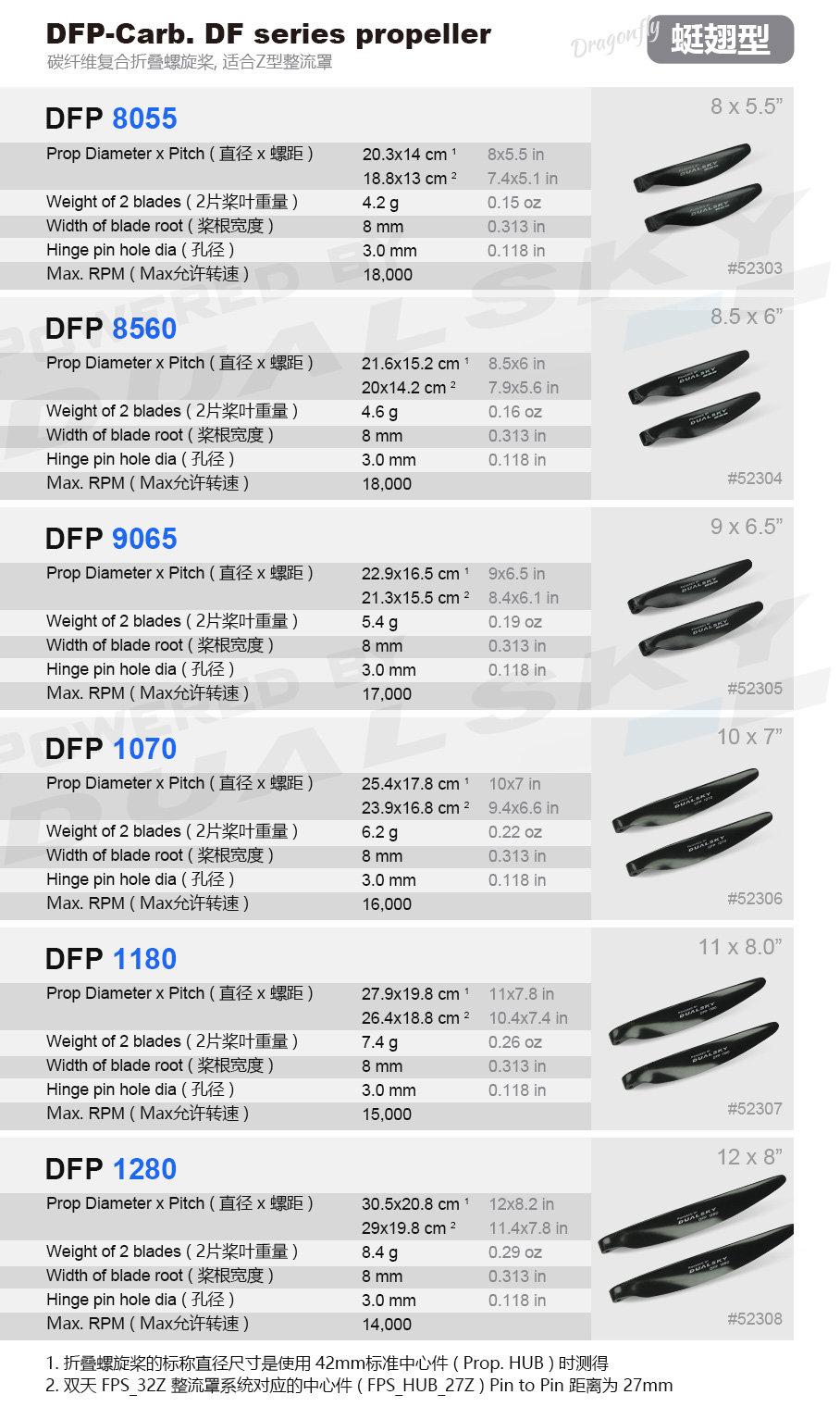

52303                DFP 8055 - Carb. Z     8.0 x 5.5"               4.2g                       18000

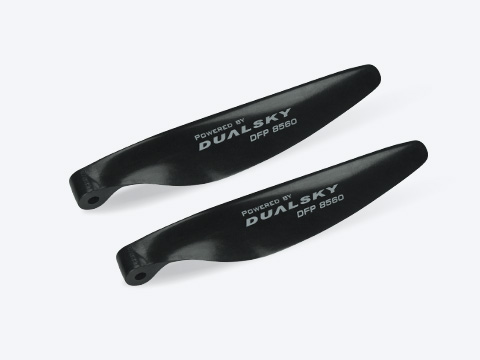

52304                DFP 8560 - Carb. Z     8.5 x 6.0"               4.6g                       18000
52305                DFP 9065 - Carb. Z     9.0 x 6.5"               5.4g                       17000
52306                DFP 1070 - Carb. Z     10.0 x 7.0"             6.2g                       17000
52307                DFP 1180 - Carb. Z     11.0 x 7.8"             7.4g                       15000
52308                DFP 1280 - Carb. Z     12.0 x 8.2"             8.4g                       14000

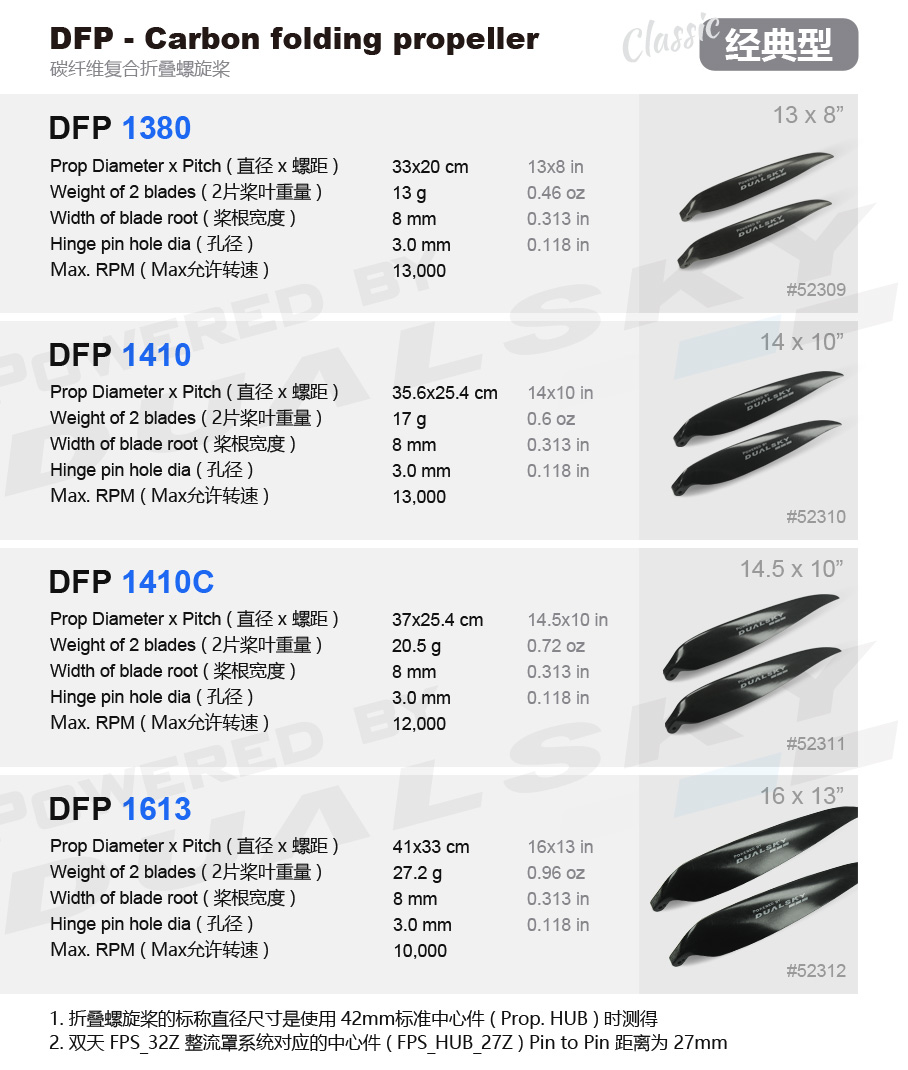

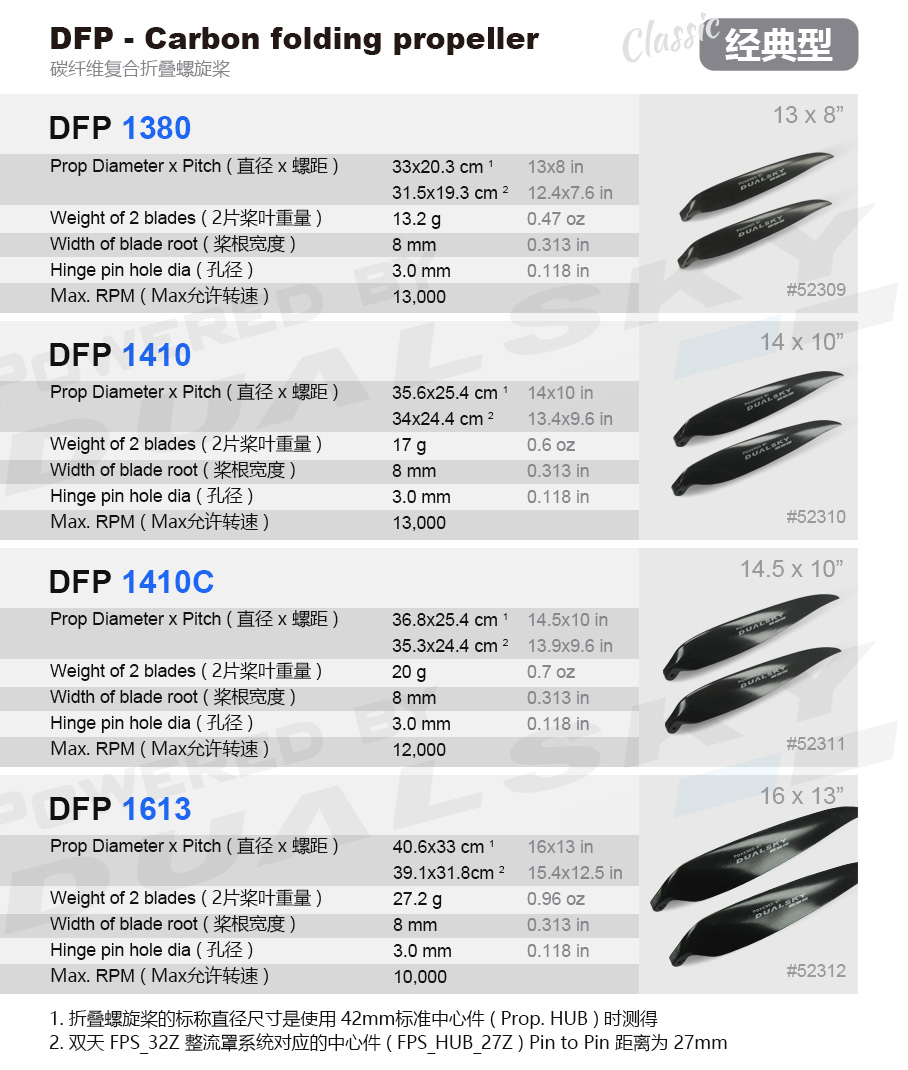

52309                DFP 1380 - CFRP        13.0 x 8.0"            13.0g                      13000
52310                DFP 1410 - CFRP        14.0 x 10.0"          17.0g                      13000
52311                DFP 1410C - CFRP      14.5 x 10.0"          20.5g                      12000
52312                DFP 1613 - CFRP        16.0 x 13.0"          27.2g                      10000
    No Download…
